1. si.inp generation
2.
MoveSiInp.pl
a. TransientHspice.pl
b. CapaFinder.pl
3.
Transient Analysis
4.
Entra-point Consideration
5.
HspiceAUTO.pl
a. Spectre2Hspice.pl
b. fallrisetable.pl
6.
librarylist.pl
7.
librarymaker.pl
8.
LibraryCompiler
The Spectre source file si.inp is in spectre_nand2x1.run1 folder in standardcell folder. We use MoveSiInp.pl to create a nand2x1 under spicetest and move the source file under nand2x1.
Perl spicetest/tools/MoveSiInp.pl

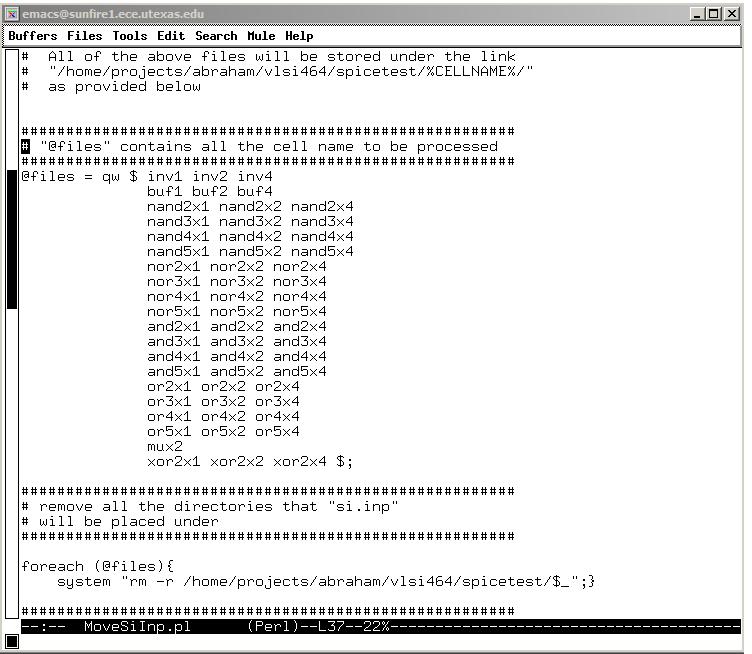

It also calls the TransientHspice.pl and CapaFinder.pl. A partial view of MoveSiInp.pl is in the following picture.
The script will also work for all the cells in the above list. For this tutorial, we only have nand2x1.
