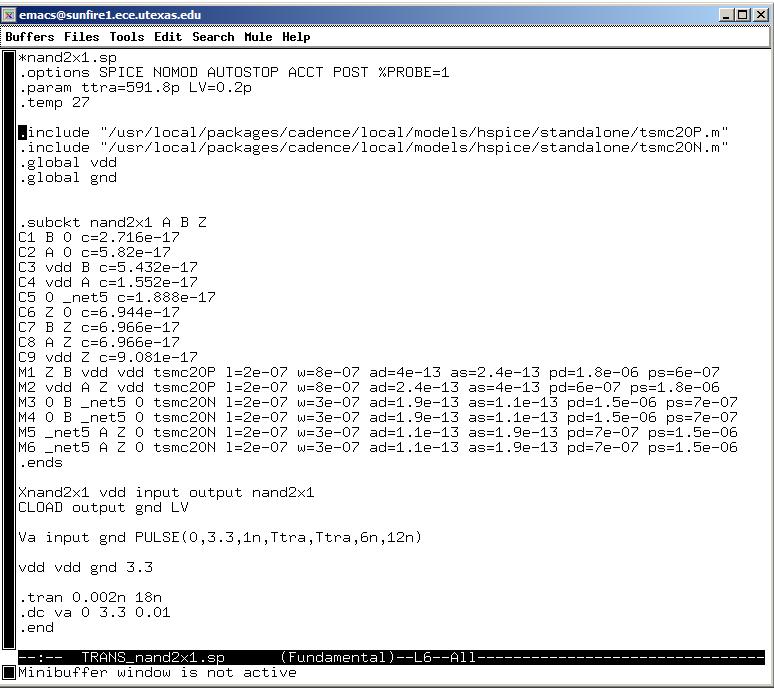

TransientHspice .pl will take the si.inp and transform it into a Hspice file for transient analysis of the cells. The output Hspice file will be called TRANS_(cell name).sp. In this tutorial, we have TRANS_nand2x1.sp. This file looks like this:
MoveSiInp.pl then runs a Hspice simulation on this file and stores the result in the nand2x1 folder.
